# 阴影

下面介绍了在3ds Max的Verge3D中设置漂亮的实时阴影的设置和最佳实践。

![](https://www.soft8soft.com/docs/files/shadows-max/shadows-example.jpg)

### 灯光设置(Per-Light Settings)

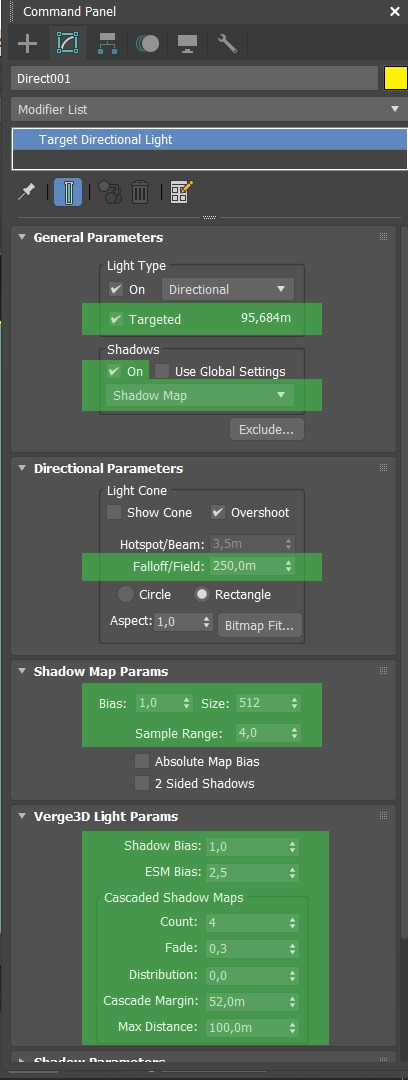

可以使用3ds Max的本机面板为每个单独的灯启用/禁用阴影。支持的阴影设置以绿色突出显示。<br>

<div align="center"><img src="https://www.soft8soft.com/docs/files/shadows-max/shadow-settings-perlight-max.jpg" alt=""></div>

必须启用 复选框**On，**&#x5E76;且必须在下拉列表中选择**阴影贴图(Shadow Map)**，以便在Verge3D中显示阴影。

**衰减/场(Falloff/Field)**&#x5B9A;义阴影体积（越少越好）。

**偏差(Bias)**&#x53EF;以调整，直到你摆脱自我阴影瑕疵和/或彼此平移效果。

**大小(Size)**&#x63A7;制阴影纹理有多大（在速度和质量之间交易）。

**样本范围(Sample Range)**&#x63A7;制阴影的模糊比。

**绝对地图偏差(Absolute Map Bias)**&#x53EF;以根据场景大小独立计算**偏差**。

### 对象设置(Per-Object Settings)

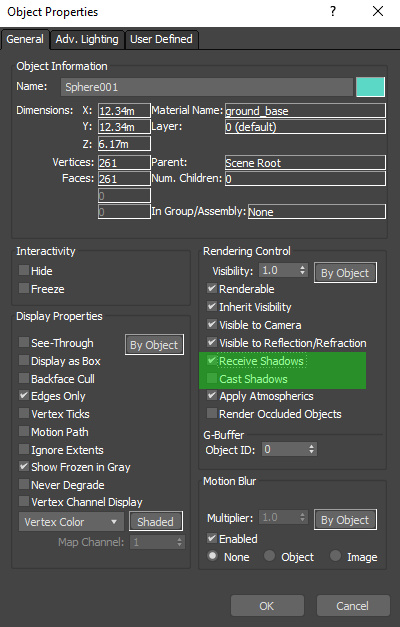

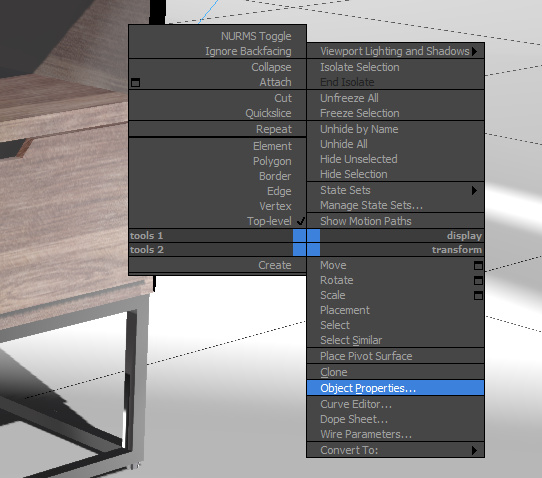

您还可以基于per-object启用和禁用接收和投射阴影。

![](https://www.soft8soft.com/docs/files/shadows-max/object-properties.jpg)

![](https://www.soft8soft.com/docs/files/shadows-max/shadows-per-object-settings.jpg)

您可以查看以下[视频，](https://www.youtube.com/watch?v=ItsmBFa3lU0)了解如何在3ds Max中设置阴影。

有关更多信息和最佳实践，另请参见Autodesk的官方[文档](https://knowledge.autodesk.com/support/3ds-max/learn-explore/caas/CloudHelp/cloudhelp/2017/ENU/3DSMax/files/GUID-4BF878CD-5BD6-4F1A-A20B-8A6BD7D3703B-htm.html)。


---
